Single-Ply Tie-Ins

RedLINE^® Tie-in is a dual roof membrane tie-in system. It effectively solves the problem of single ply roof membrane connections to other incompatible roof systems. The RedLINE^® Tie-in material is specially formulated to provide a long term performance solution to cross roofing system compatibility, specifically Built-Up-Roofing, Coal Tar Pitch, Modified Bitumen, Hot Rubberized Asphalt, Spray Polyurethane Foam and Epoxy Resin.

The RedLINE^® Tie-in is comprised of a continuous material strip which is compounded of a specially formulated elastomer with polyester fleece embedded in the salvage edge on one side.

RedLINE^® Tie-in is supplied directly to the job site in a roll with all detail work done and seamed together by a proprietary vulcanizing process, which results in monolithic and elastic seamed joints. Seaming can also be done on site if required.

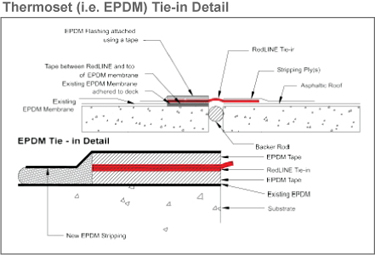

For the membrane tie-in configuration, a specially manufactured RedLINE^® material is used. The RedLINE^® material typically has polyester fabric embedded one of the salvage edges (top and bottom surfaces). This salvage edge, is the edge that is embedded into the asphalt/bitumen roof side. The other salvage edge depending on the membrane that is being tied in, this salvage edge will either be smooth or have fleece. The fleeced edge can be attached to a PVC roof using a proprietary sealant while attachment to an EPDM roof membrane is done by using the factory attached peel back tape on a smooth edge. Both methods of attachment result in a waterproof, zero profile tie-in detail, which can be installed in minutes on a roof.
